 Discrete Dynamics Lab

Examples of the network graph and the attractor jump-graph

A new feature in DDLab is a graph with weighed vertices and weighted directed edges, which can be rearranged by dragging vertices. There are also various other methods for investigating and manipulating the graph, which can also be presented as a link table or matrix.

The graph is applied in two ways.

• To represent the RBN or CA network itself.
• As an attractor jump-graph, which shows the probability of jumping between basins of attraction caused by 1-bit flips to attractor states, giving an idea of the stability and mobility between basins of attraction subject to noise. The algorithm in DDLab version 23 contained an error in computing the jump-graph, so please update to version 24 where the error is fixed.
Both types of graph show nodes linked by directed edges, where the outgoing edge is colored the same as its parent node. Both the nodes and edges are scaled, for networks graphs according to k, for attractor jump-graphs according to basin volume, the fraction of state-space in each basin. The full width of the outgoing links is then apportioned according to the jump probabilities. The stubs on nodes indicate self links.

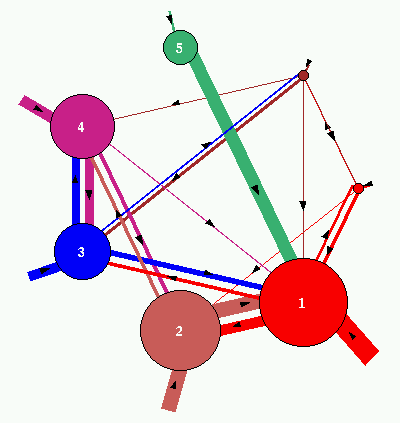

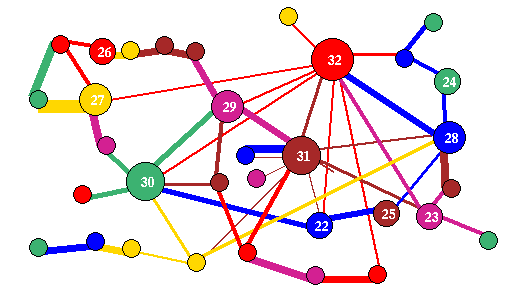

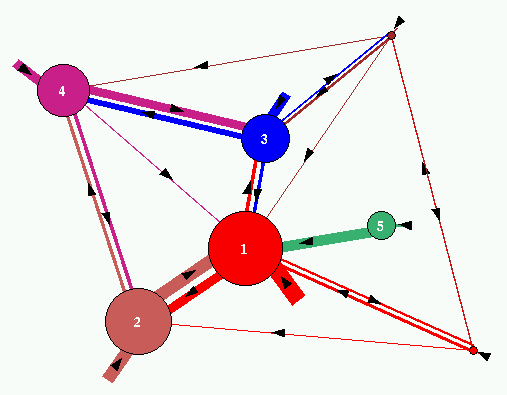

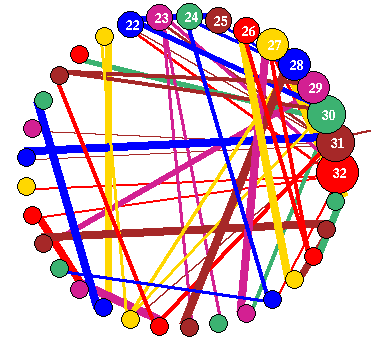

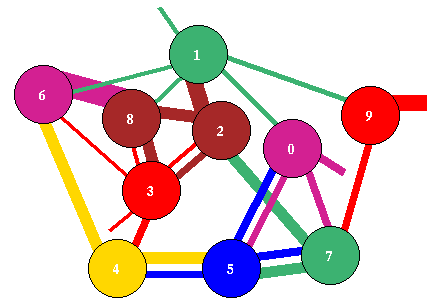

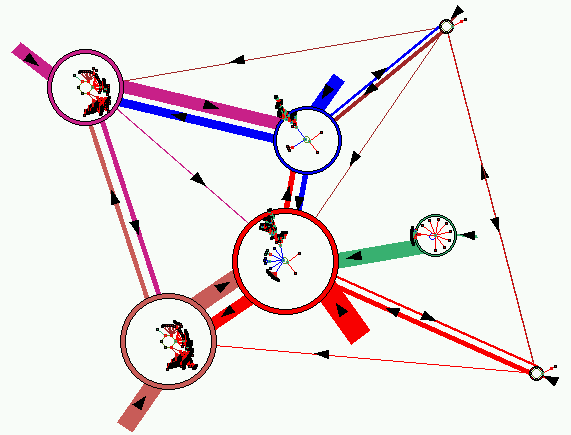

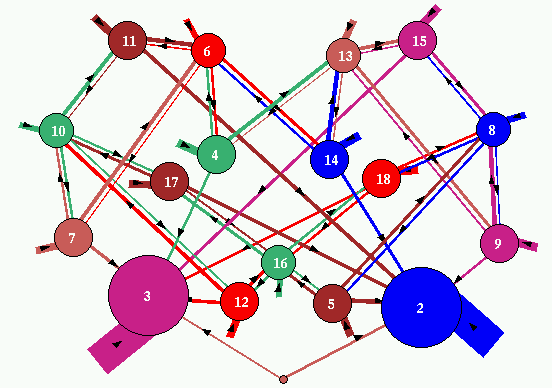

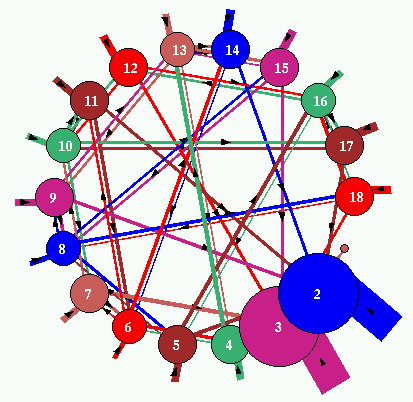

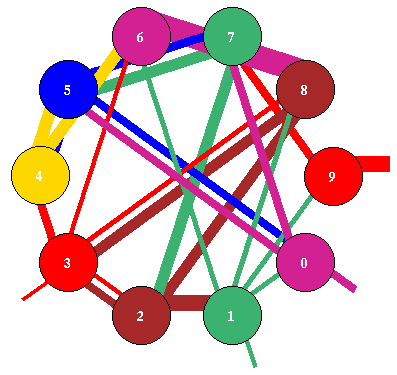

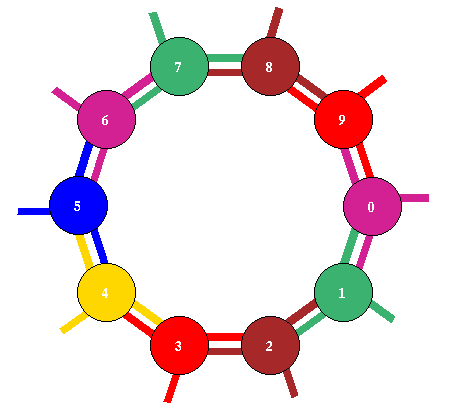

Click on each image to see it full size.  The graph as it first appears. The same graph rearranged by dragging vertices with the mouse. Fig 1. A graph of an RBN network, n=33 with a power-law distribution of both k and out-degree, which is biased according to k. The power law exponent is 2. Nodes and edges are scaled according to k.  The network graph as it first appears. The same network graph rearranged by dragging vertices with the mouse. Fig 2. A graph of an RBN network, n=10, k=3. Nodes and edges are scaled according to k. Its attractor jump-graph is shown below.  The attractor jump-graph as it first appears. The same attractor jump-graph rearranged by dragging vertices with the mouse. Fig 3. The attractor jump-graph of the network in fig.2. There are 9 basins. Nodes and edges are scaled according to basin volume, the fraction of state-space in each basin. Fig 4. The attractor jump-graph with the relevant basins of attraction drawn inside each node. Fig 5. Above, the network graph of a 1d CA, n=10, rule 141. The attractor jump-graph of the network is shown below.  The attractor jump-graph as it first appears. The same attractor jump-graph rearanged by dragging vertices with the mouse. Fig 6. The attractor jump-graph of the network in fig.5. There are 18 basins. Nodes and edges are scaled according to basin volume, the fraction of state-space in each basin. Fig 7. The jump-graph with the relevant basins of attraction drawn inside each node.
